Open EasyMPD WEB GUI

Preparation

All settings for network music player can be done with just a few clicks on the web browser in EasyMPD. This WEB based user interface is called as WEB GUI. If you open the EasyMPD WEB GUI at the first time after installing EasyMPD, the Initial Setup Wizard will automatically start. Through this initial setup wizard, you can make your network settings and can register the shared network music directory easily.

In order to let Initial Setup Wizard perform these processes properly, you should make sure that following preparation must be ready before you turn on the power of Alix,.

  • 1. DAC or DDC must be connected to Alix via USB and they are turned on.
  • 2. To register the network shared music folder, the computer or the NAS of the shared folder must be powered on and they should be connected to the router.
  • 3. If you want to use USB external USB HDD, it should be directly connected to Alix via USB.(The USB external HDD should be formatted in NTFS.)
  • 4. Network Port must be connected to the internet router with wired LAN. Alix and APU have different location of Network port that should be connected to router. Pleas see following images.


Turn on Alix if you are ready.



Open EasyMPD WEB GUI

After turning Alix on, it will take about 2 minutes to finish booting.

In the middle of boot time the three LEDs in front of Alix are blinking at the same time. When the LEDs start sporadically after the simultaneous blinking, you can open EasyMPD.
You can open EasyMPD WEB GUI with any device, if they have the internet web browser. But please make sure that the device should be connected to the same router that Alix connected to. If you use portable device like smartphone or tablet PC, make sure the device must be connected to your router via WiFi.

The default initial username and password for logging into EasyMPD is "root" and "easympd".

  1. Open EasyMPD WEB GUI in iOS (iPhone, iPad, iPod touch) or in Mac OSX.
  2. Open EasyMPD WEB GUI in Android base smarphone or tablet PC.
  3. Open EasyMPD WEB GUI in Windows 7 or Windows 8.
  4. Open EasyMPD WEB GUI in Windows XP.
  5. Open EasyMPD WEB GUI with Wizard Port. (If you failed with all above 4 methods.)



  1. Open in iOS (iPhone, iPad, iPod touch) or Mac OSX.
    First Method

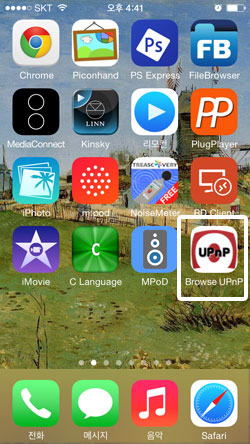

    Install "UPnP Browser" App and run it.

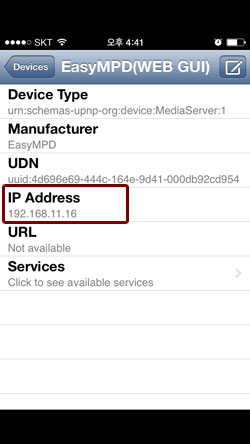

    Select EasyMPD(WEB GUI) and then touch "IP Address". Then EasyMPD WEB GUI will open in Safari.



    Second Method
    In iOS, you can open the EasyMPD WEB GUI easily thanks to a technology called Bonjour. Open Safari and enter "http://easympd.local/" at address bar. (do not omit "/" at the end.) Sometimes it fails to open EasyMPD WEB GUI. Then try several times more.


  2. Open in Android based smarphone or tablet PC.

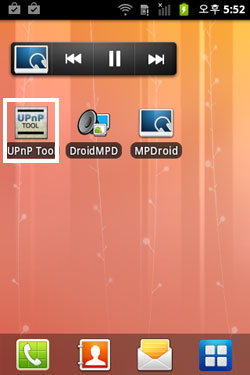

    Install "UPnP Tool" App and run it.

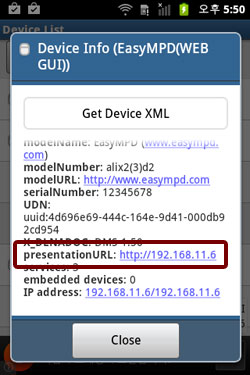

    Touch "!" beside EasyMPD(WEB GUI) then Device Info will open. Find "presentationURL" and touch it. Then EasyMPD WEB GUI will open at internet web browser.




  3. Open in Windows 7 or Windows 8.
    First method
    Open your favourite internet web browser. Enter "easympd/" at address bar at the top of the browser and hit enter.

    If you fail with the first method you can try with the second method below.

    Second Method See video tutorial
    Open Windows explorer and click "My Network Places" at left window. Then you can see "EasyMPD(WEB GUI)" in media devices at right window. Place your mouse over the EasyMPD shortcut and click the right mouse button. And then select "View device webpage".

  4. Open in Windows XP.
    First method
    Open your favourite internet web browser. Enter "easympd/" at address bar at the top of the browser and hit enter.

    If you fail with the first method you can try with the second method below.

    Second Method
    A. In Windows XP, unfortunately UPnP function is not enabled by default. So you must first enable UPnP function in Windows XP.
        a. Open Control Panel and go to "Add/Remove Windows Components". (Start -> Control Panel -> Add or Remove Programs -> Add/Remove Windows Components)

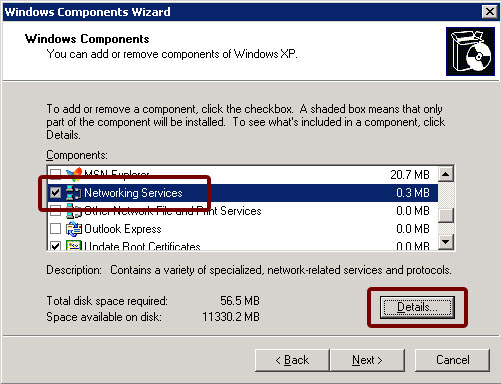

        b. Select "Networking Service" and click "Details".
        c. Check the check box of "UPnP User Interface" and click "OK", "Next" and "Finish" consecutively.
        Go to see the process in detail.


    B. If you successfully enabled UPnP, open "My Network Places" (Start -> My Network Places") then you can see EasyMPD WEB GUI shortcut. You can open EasyMPD WEB GUI with double-clicking the shortcut.


  5. Open with Wizard Port. (If you failed with all above 4 methods.)
    Alix 2D2 board has two ethernet ports. We call the first ethernet port nearby USB port "Network Port" and the second ethernet port far from USB port "Wizard Port". If you connect your computer directly to this "Wizard Port" you can open EasyMPD WEB GUI and you can start Initial Setup Wizard.

    A. If your computer is not set to obtain the IP address automatically, you should change the network settings of the computer to obtain the IP address automatically as follows.
        a. In case of Windows 7
    Start -> Control Panel -> View network status and tasks -> Change adapter settings -> Local Area Connection(Double clicks) -> Properties -> Double click on Internet Protocol Version 4(TCP/IPv4))
        Go to see the process in detail.
        b. In case of Windwos XP
    Start -> My Network Placees(Click right mouse button and select "Properties") -> Local Area Connection(Double clicks) -> Properties -> Double click on Internet Protocol(TCP/IP))
        Go to see the process in detail.

    B. After Alix finishs booting, you should connect your computer to Alix's Wizard port as below picture.
    C. Open your favourite internet web browser and enter "http://10.10.10.1" at address bar at the top of the web browser and hit Enter.

The default username and password for loging into EasyMPD WEB GUI are EasyMPD WEB GUI "root" and "easympd".


Go back to "Getting Started"
